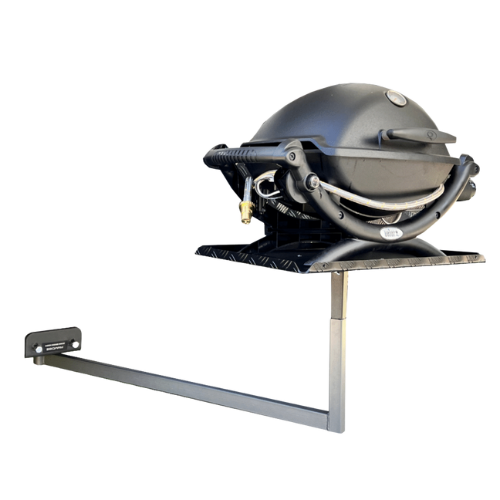

BBQARM Kit for Under Chassis Mounting
PRODUCT INFO
The new Under Chassis Mounted BBQARM consists of 3 parts listed below:
- Under Chassis Mount (UCM) 2.85kg
- Powder-coated Under Arm 2.85kg
- Chequer-plate Tray (2 sizes) & (plain or Black powdercoat) Reg 2.5kg Lge 3.5kg
**Individual items can be purchased separately
**Total kit 8.25kg

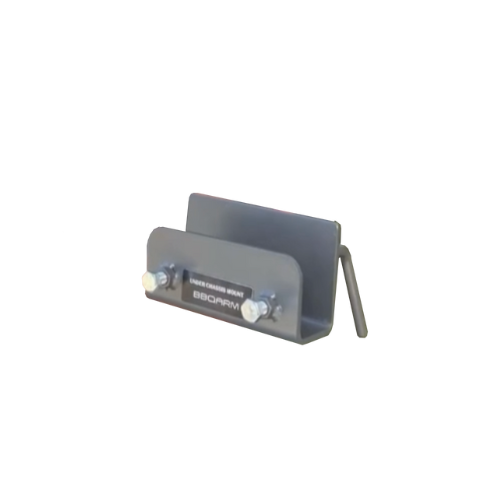

Under Chassis Mount (UCM)
The new Under Chassis Mount (UCM) is specifically designed to mount up under your chassis. The UCM is made from heavy duty 6mm steel and powder-coated with a highly durable, Dulux “ProTex Monument”. 175mm left to right, fits 50mm 2inch drawbars, 2.85kg.
Under Arm
The Under Arm is made from heavy duty galvanised tube and is powder-coated with the same highly durable, Dulux “ProTex Monument”. This Under Arm is designed to pull against the chassis enabling the kit to be mounted without bolting or welding. 1mtr lengths, 2.85kg weight.

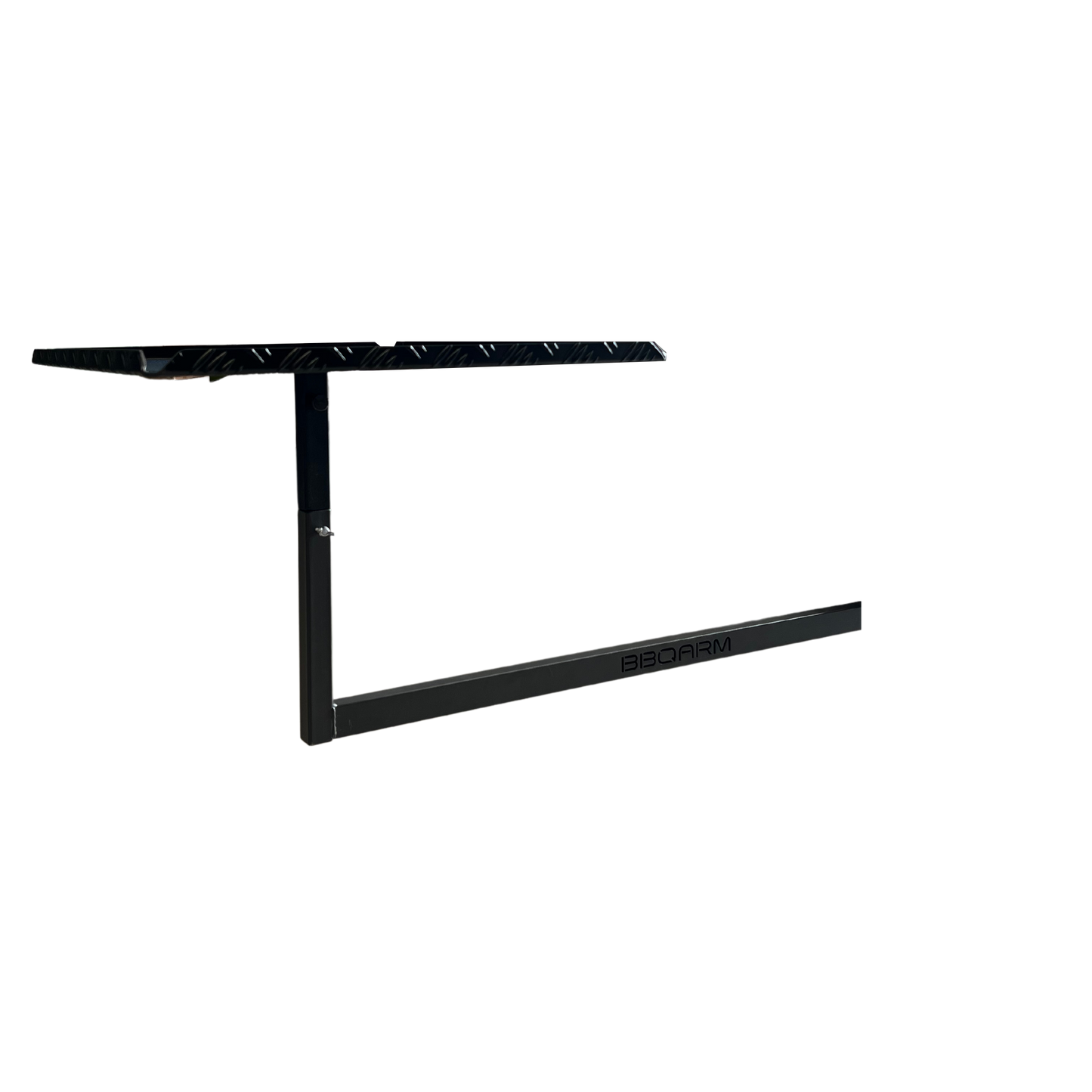

Tray/Table Top
Made from 2.5mm aluminium checker plate with upturned edges in your choice of black powder-coat or plain. Trays are available in two different sizes:

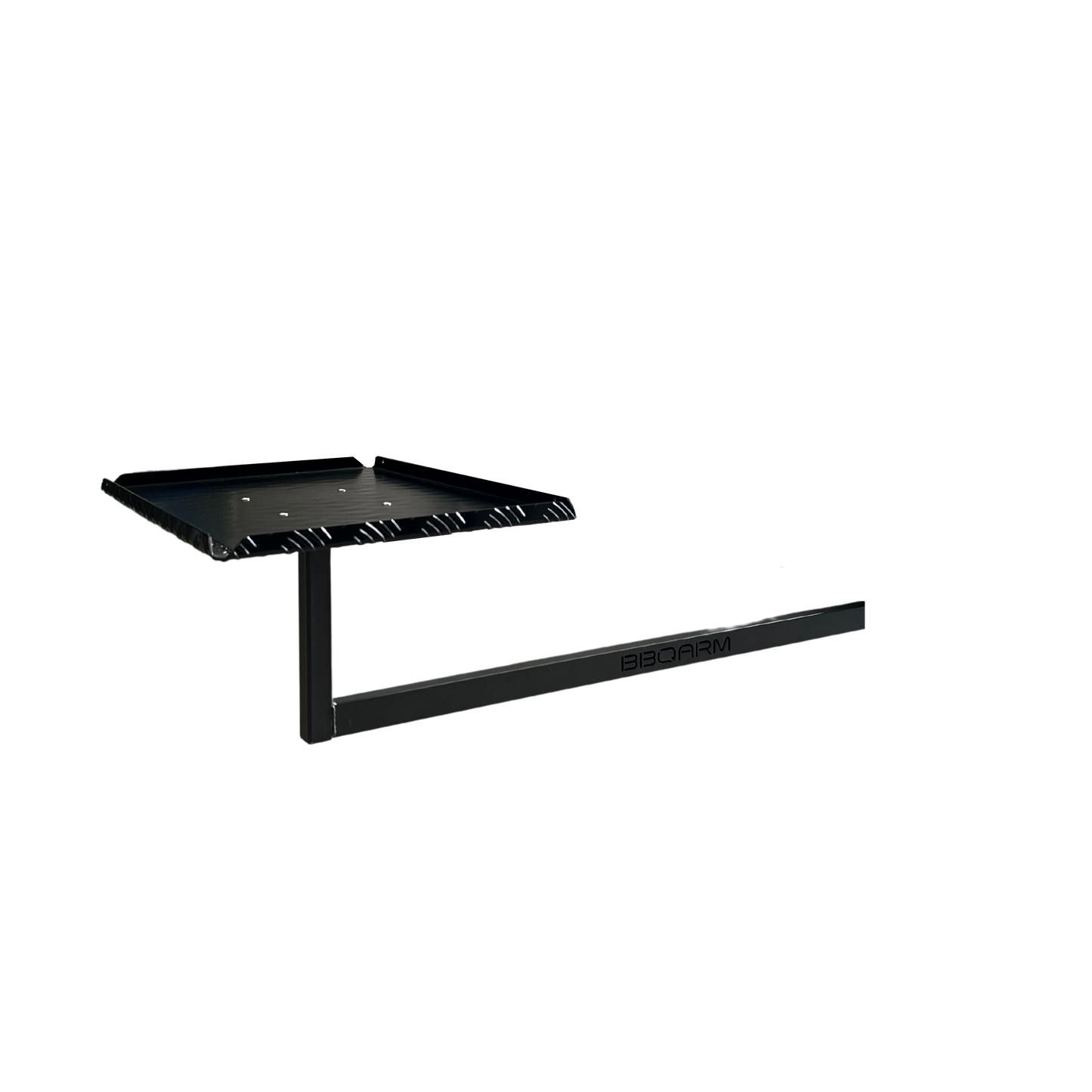

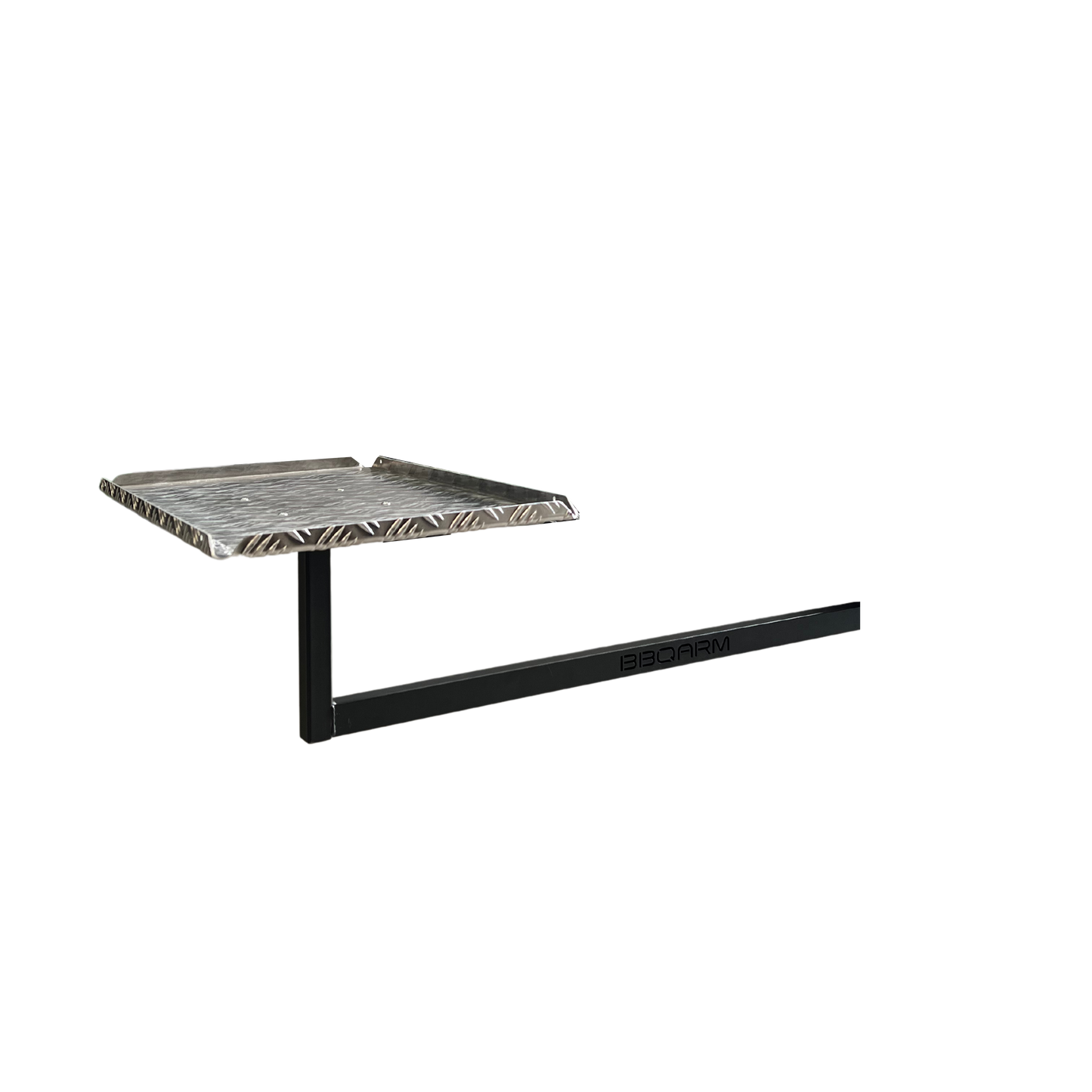

- Regular 560mm x 360mm (suits Weber Baby Q & Q2000) 2.55kg

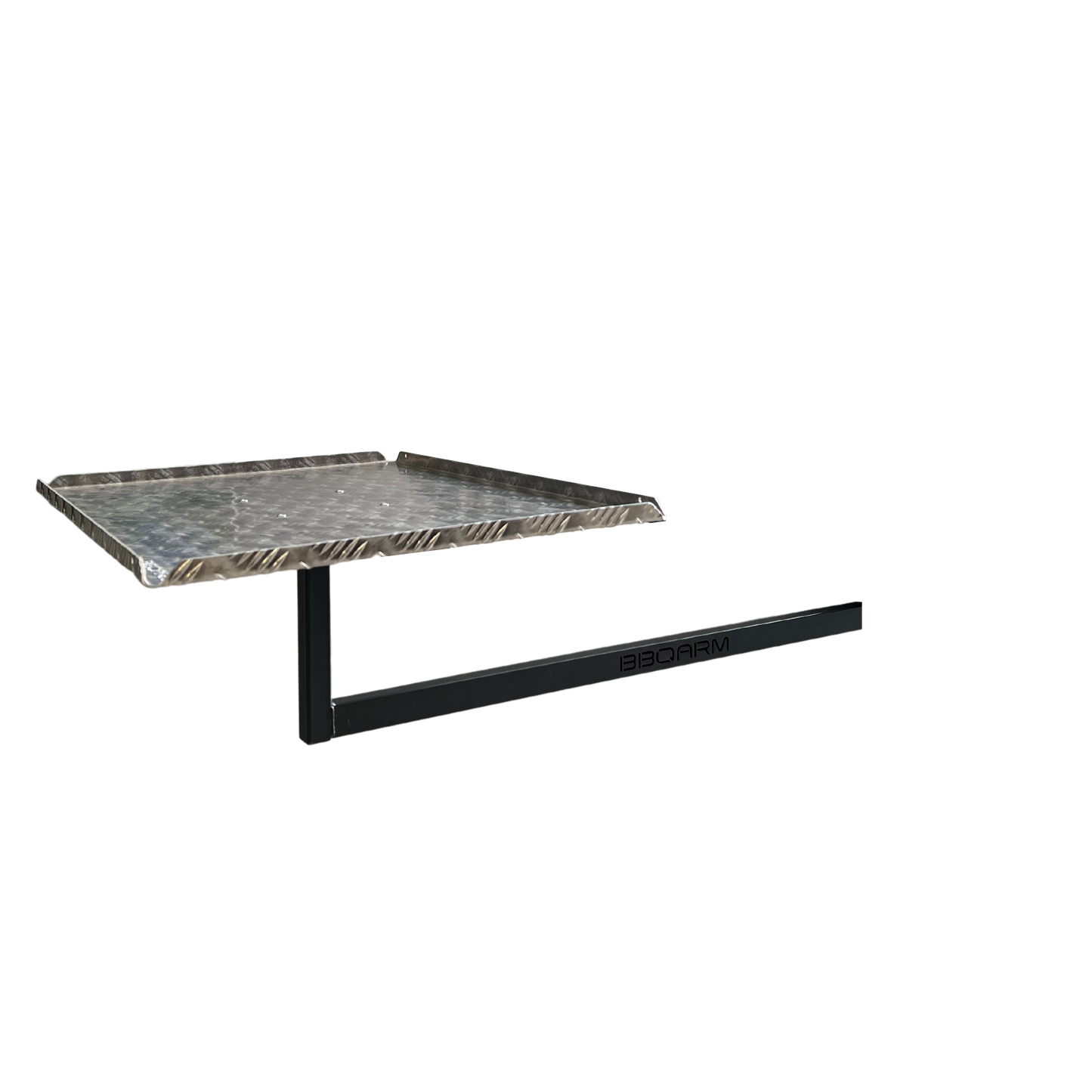

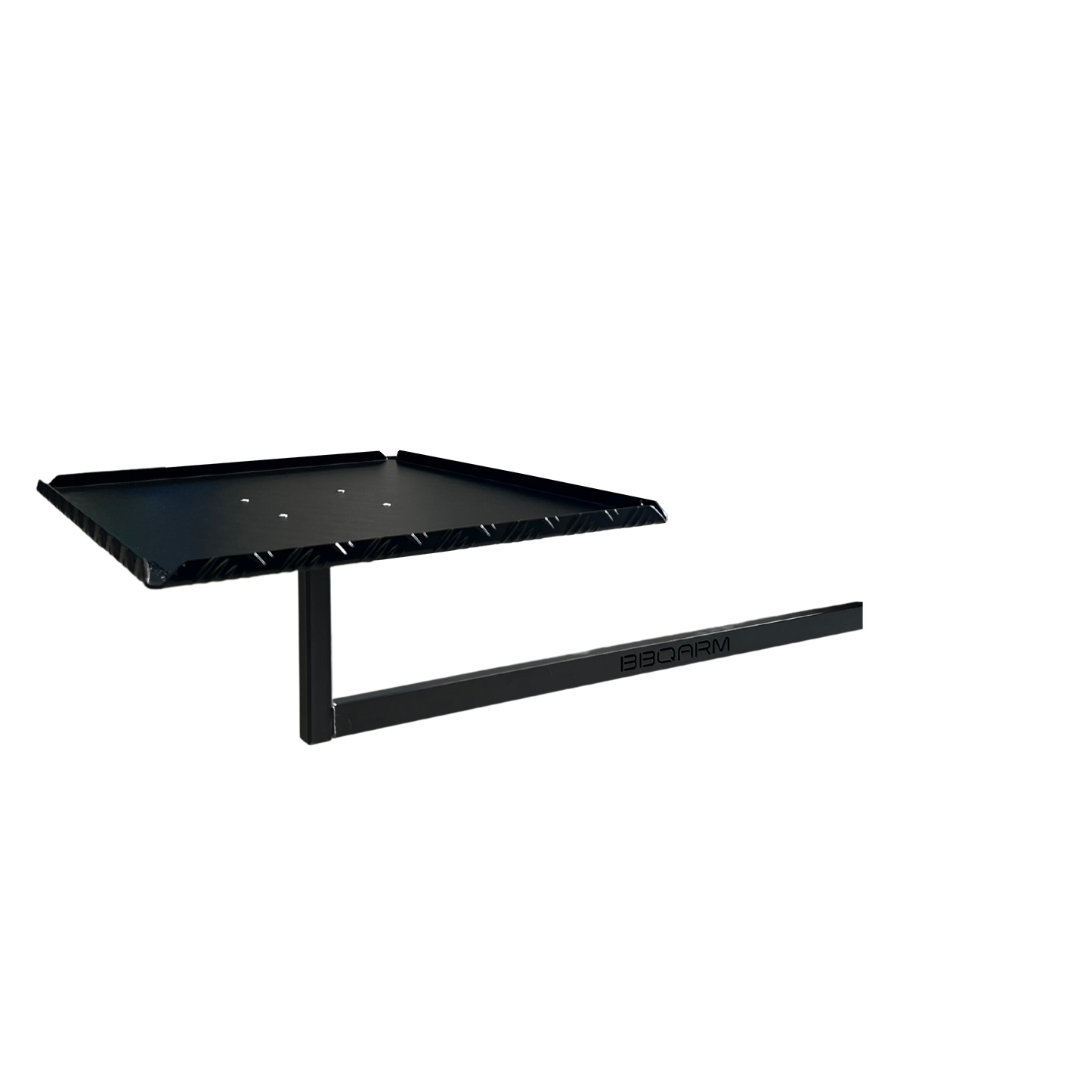

- Large 700mm x 500mm (suits Ziggy and larger portable BBQs) 3.5kg

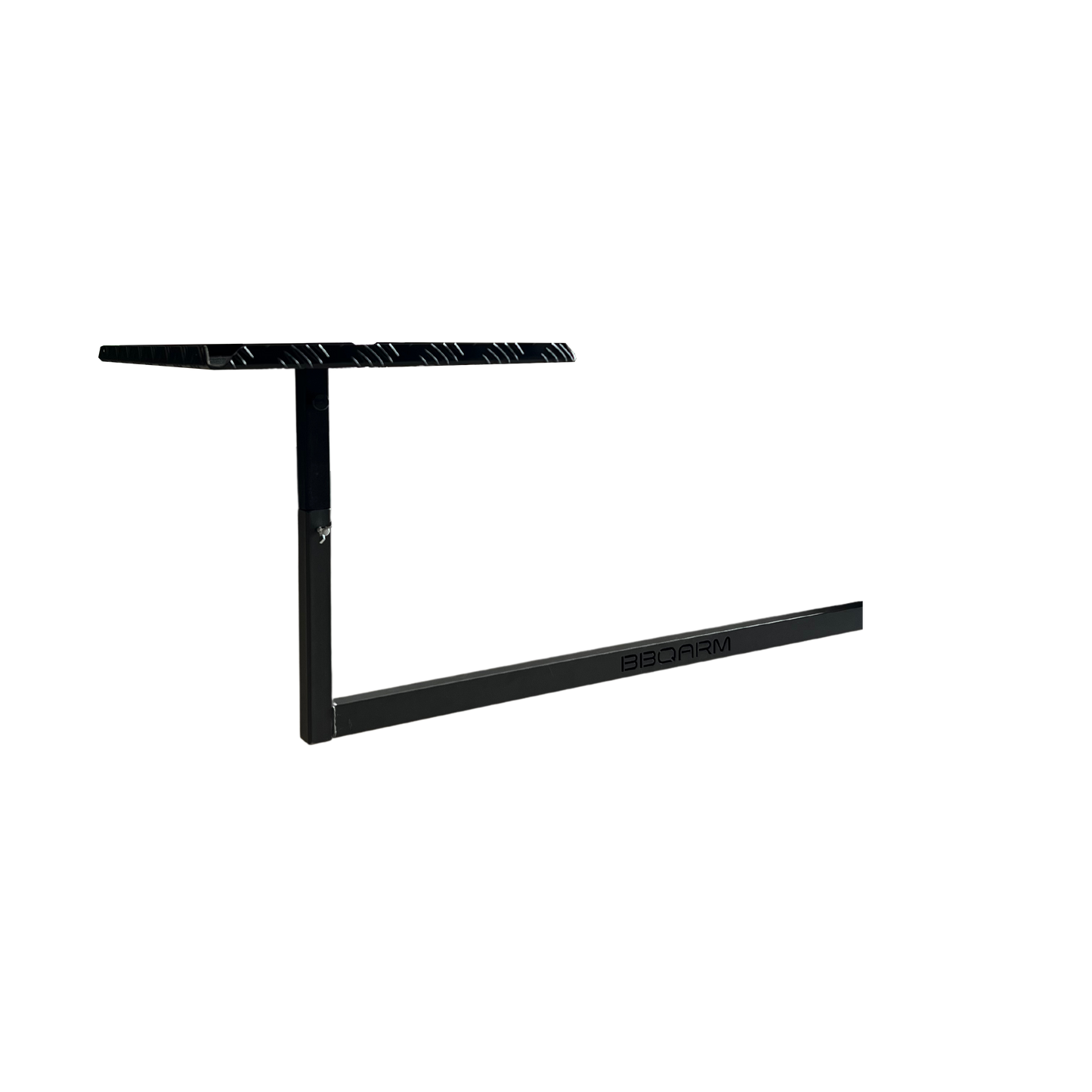

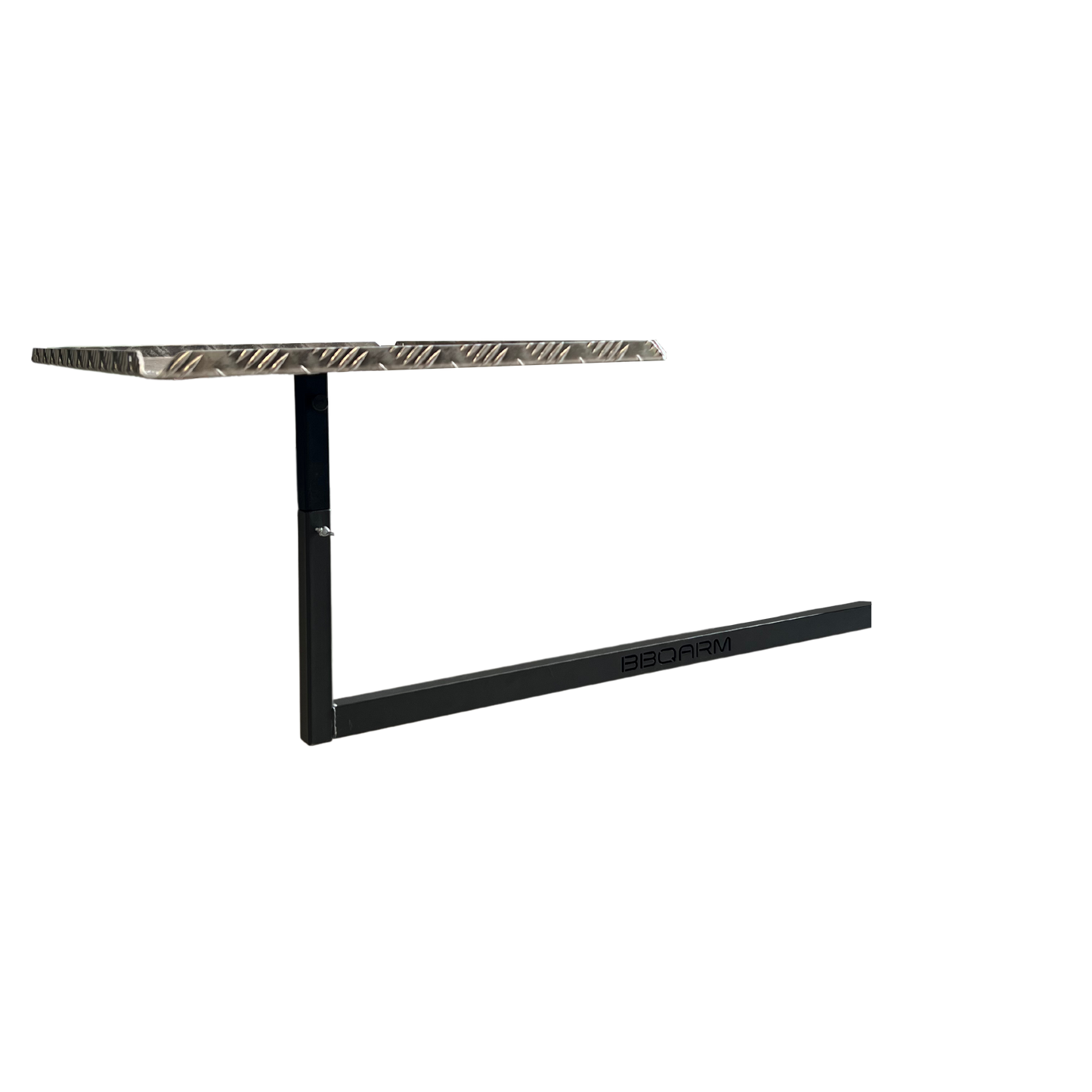

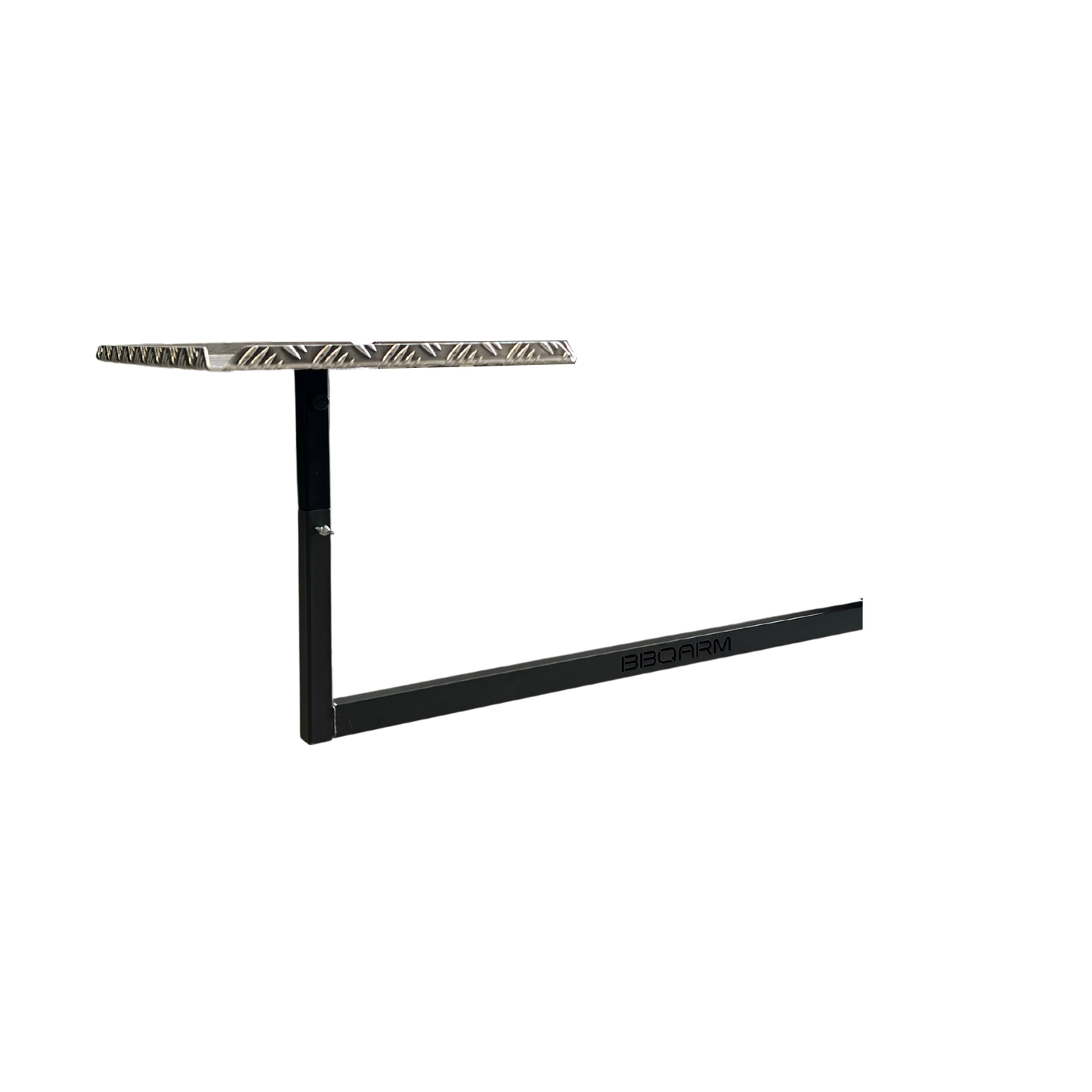

**Tray Riser - Height Extender
For those really low Chassis or tall cooks, this is a very simple solution to gaining a bit of height whilst cooking on your bbq.
Powder-coated galvanised steel section simply drops into the end of the arm section to extend the height by 160mm. Comes with wing-bolt in place.
Total additional weight is 40grams
