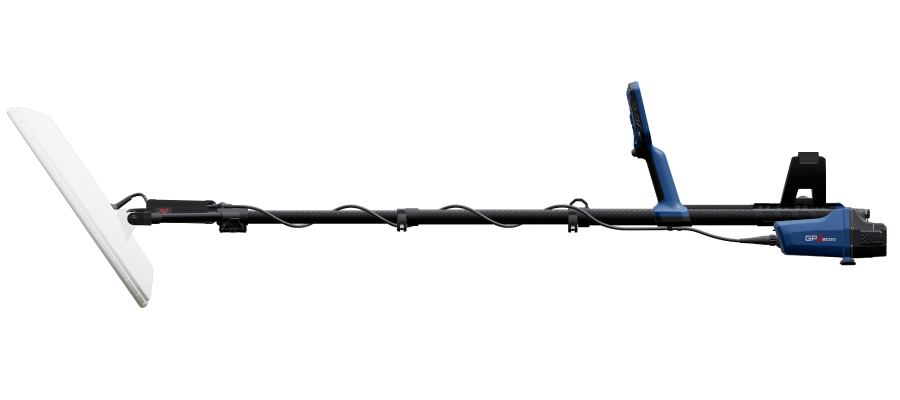

THE NEW MINELAB GPZ 8000:
Ultimate Depth. Ultimate Control:
- The GPZ 8000™ is Minelab’s newest flagship gold detector, engineered for advanced performance in challenging ground.
- Z-Set concentric toroidal coils offer three coil options to match detection style, target size and ground conditions.
- Ground optimized detection delivers maximum depth on both small and large gold, with Echo Sonic Pro™ audio providing rich layered sound and enhanced stereo separation for clear target definition.
- A new level of depth, control, and adaptability for serious prospectors.
Maximum Depth Penetration:
- Optimal gold depth through ground-optimized detection, enabling maximum depth on both small and large gold by matching the right mode to the right ground.
PRO-SWING 125 Harness:
- Distribute detector weight during long hunts while keeping movement unrestricted.
- Weight is transferred through the hips to reduce fatigue, supported by the GA10 guide arm to improve swing control and reduce strain.
Wireless Audio Freedom:
- Experience real-time wireless audio with the WM 14 wireless audio module, maintaining low latency sound and clear signal detail without cables.
- Move freely with extended range and maintain consistent target audio throughout the field.
Lighter Swing:
- Weighs only 2.78 kg (6.1 lbs) for comfortable control and a lighter swing during long sessions.
GeoZVT™ Technology:
- Proven ZVT™ depth with advanced signal control for high performance in mineralized, conductive, and EMI-heavy ground.
- Uncover gold in difficult ground conditions, turning challenging terrain into productive ground.
Ground Type Selection:
- Optimized performance engineered for every :ground condition, with precise analysis and adaptation to changing terrain.
- Four ground types use Echo Sonic Pro™ audio to identify ground conditions through nuanced stereo feedback, while performance is tailored to locate shallow crumbs to deep nuggets in mineralized and conductive soils.
Z-Set Concentric Toroidal Coils:
- The Z-Set Concentric toroidal coil range includes the Z18 18", Z17 17", and Z13 13" coils, each engineered for specific ground conditions and reduced ground noise in mineralized soils.
- Z18 focuses on maximum depth and stability in highly mineralized ground, allowing deeper penetration to locate medium to large gold while efficiently covering wide open areas with reduced ground noise.
- Z17 is designed for high EMI and conductive soils, with stable operation and strong target response on small to medium gold.
- Z13 suits vegetation-heavy terrain and supports accurate detection of small to medium gold, with balanced handling and reduced fatigue over long sessions.
Single Coil Pack:
-
The Single Coil Pack includes the Z18 Concentric Toroidal coil to expand ground coverage and reaches deeper soil layers.
-
Ground noise is reduced while maintaining strong response on medium to large gold at maximum depth.
-
Terrain and targets vary, but depth and stability do not.
Three Coil Pack: The Three Coil Pack includes the complete Z-Set Concentric Toroidal coil range.
- Z18 provides expanded ground coverage and deeper soil penetration with reduced ground noise and strong response on medium to large gold at maximum depth.
- Z17 delivers stable performance in high EMI and conductive soils with reliable detection of small to medium gold.
- Z13 moves easily through vegetation-heavy terrain, maintaining balance during extended sessions while remaining highly responsive to small and medium gold.
- Together, the Z-Set Concentric Toroidal coil range transforms one detector into a multi-configuration gold recovery platform.
Echo Sonic Pro™ Audio:
- Experience rich layered audio across every tone with enhanced stereo separation that sends distinct signal components to each ear.
- Designed for use with true stereo high-fidelity headphones with a flat frequency response.
- This level of audio clarity reveals subtle target differences and allows accurate identification of promising signals without compromising depth.
Full-Color LCD Display:
- Combines vivid visuals with a clean and modern menu system, making it easy to access settings, view the display, and stay oriented in the field.
- The interface stays clear and readable when conditions demand it.
1. Low Latency Wireless Audio
2. LCD Backlight & Flashlight
3. Ground Type Selection
4. Adjust Sensitivity
5. Echo Sonic Pro™
6. Manual Sensitivity
7. Auto/Auto + Sensitivity
8. Volume Control
9. Mineralization Level
10. Auto/Manual Noise Cancel
11. User Shortcut
1.Side Buttons
2. Handgrip
3. Upper Shaft
4. Cable Hooks
5. Control Box Latch
6. Coil Connector
7. Control Box
8. Stand
9. Display and Keypad
10. Armstrap
11. Armrest
12. Armrest Lock
13. Armrest Rail
14. Headphone Socket
15. Battery Latches
16. Battery Pack
MORE FEATURES:
Audiophile Wired Headphones:
- High fidelity headphones produce an immersive and high resolution audio experience.
- Premium materials ensure lasting comfort during long detecting sessions.
Hybrid Shaft System:
- The Hybrid Shaft System combines carbon fiber and fiberglass to create a strong and lightweight setup that reduces vibration and reverberation during knocks and bumps.
- A tear-drop shaft profile maintains consistent alignment and prevents unwanted rotation, and the fiberglass lower shaft minimizes detection noise for clearer audio on subtle signals.
ACCESSORIES:
HARNESS PRO_SWING 125 ACCESSORY
- Distributes detector weight through the hips to reduce fatigue.
- Integrated hydration compartment fits up to a 2L pouch with built-in straw routing for easy access.
Z13 13" CONCENTRIC TOROIDAL COIL:
-
The ultimate for deep and small gold nuggets in mineralized ground.
-
Highly maneuverable in rugged terrain and vegetation with effortless balance and control for long detecting sessions.
Z17 17" CONCENTRIC TOROIDAL COIL:
- The ultimate choice when the ground is noisy due to conductivity or atmospheric conditions.
- Detect a diverse range of small to medium targets in locations that were previously untouchable, with stable operation and strong target response.
Z13 13" CONCENTRIC TOROIDAL COIL:
-
The ultimate for deep and small gold nuggets in mineralized ground.
-
Highly maneuverable in rugged terrain and vegetation with effortless balance and control for long detecting sessions.
GPZ 8000 TECH SPECS:
SEARCH MODES:
- Normal
- Difficult
- Difficult Deep
- Normal Deep
- Extra Deep
DETECTION CONTROLS:
- Sensitivity - Manual (1-10), Auto, and Auto+
- Noise Cancel - Auto & Manual
AUDIO FEATURES:
- Wireless Audio - Low Latency Wireless Audio
- Volume Control - 1 to 17
- Target Tones - Continuous
- Included Headphones - Audiophile Headphones
- Audio Output Options - Wired 3.5 mm Headphones, Low-Latency Wireless Audio
PHYSICAL AND ENVIRONMENTAL:
- Length - Extended: 177 cm (69.69 in), Collapsed: 102 cm (40.16 in)
- Weight - 2.78 kg (6.1 lbs)
- Operating Temperature Range - -10°C - +50°C (+14°F - +122°F)
- Storage Temperature Range - -20°C - +70°C (-4°F - +158°F)
- Waterproof - Detector, Coil, and WM 14 Waterproof - 1 m (3.3 ft) for < 30 mins
ADDITIONAL FEATURES:
- Display - Full Colour LCD
- Display Backlight - White (1 -3)
- Keypad Backlight - No
- Flashlight - Yes, White (1-3)
- Vibration - No
- Key Technologies - Z-Set Coil, GeoZVT™, Low-Latency Wireless Audio
- Warranty - 3 Years Control Box and Coil (warranty coverage may vary by region)
WHAT'S IN THE BOX:
- Supplied Batteries - 7.2 V / 46 Wh Lithium-ion Removable Pack
- Supplied Accessories - Z18 18" Concentric Toroidal Coil, 2× Rechargeable Lithium-ion Battery Pack, Pro-Swing 125 Harness, 3× Hip-strut Lengths and Hip-strut Sockets, Bungee Cord and Hooks, Screen Protector Kit, GA10 Guide Arm, Audiophile Wired Headphones, WM 14 Wireless Audio Module
